Chest X-ray child
The basic principles about the chest X-ray examination of a child.
Pathology
Age:

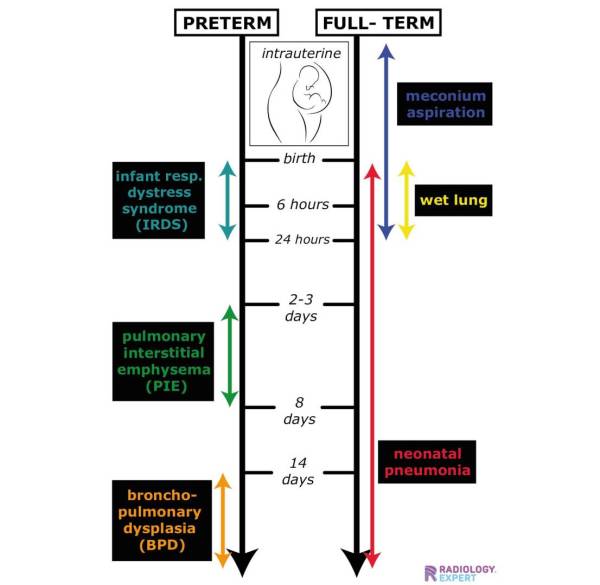

When evaluating the chest x-ray in children, it is important to differentiate between preterm infants, full-term infants and older children. Depending on the category, certain pathology is more likely; see figure 16 (the clinical features are discussed later in the module). The request for a chest x-ray should therefore include the following important information: the gestational age of the child at birth, the current age of the child, the treatment the child has received and the nature of the symptoms.
Preterm infants are categorised as follows: moderate to late preterm = infants born between 32-37 weeks of their projected due date; very preterm = infants born at less than 32 weeks of their projected due date; extremely preterm = infants born at less than 28 weeks of their projected due date. In the Netherlands, the minimum gestational age at which life-sustaining interventions will be attempted is 24 weeks. This is related to the maturity of the lungs. From 24 weeks onwards, the type 2 alveolar epithelial cells start to produce surfactant and the alveoli will increasingly develop. The lung maturity of the foetus continues to improve up until full term; in the Netherlands, lung maturity is regarded as reasonable at approximately 32 weeks’ gestation. Before 32 weeks, more surfactant-related pathology is to be expected.
Interested?
Learn everything about Chest X-ray child
Text
drs. A. van der Plas (MSK radiologist Maastricht UMC+)
Dr. I. Altmann-Scheider (fellow pediatric radiologist, Wilhelmina Kinderziekenhuis/Prinses Maxima Centrum)
Dr. A. Brandts (pediatric radiologist)
With special thanks to:
drs. M. Tijssen (Pediatric radiologist, Maastricht UMC+)
Illustrations
drs. A. van der Plas (MSK radiologist Maastricht UMC+)
Sources:
- Imaging acute airway obstruction in infants and children, Darras et al., Radiographics2015.
- Werkboek kinderradiologie, Lameer-Engel en Martijn et al., Stichting Bevordering Kinderradiologie 2003.
- Pediatric imaging, The fundamentals, L.F. Donelly,2009
- Evaluation of Umbilical Catheter and Tube Placement in Premature Infants, Lakshmana Das Narlaetal., Radiographics1991.
- Interstitial Lung Diseases in children made easier…Well, Almost. T.R. Semple et al., Radiographics2017.
